Fiber dispersity detailed measurement option TRI/3D-FBR-STRVL
Calculates the volume distribution of voids in the fiber and
the volume distribution of the mass of the fiber, and measures the spatial dispersion of the fiber. Intra-fiber void volume distribution dispersity
Fiber lump volume distribution
|
* Star Volume

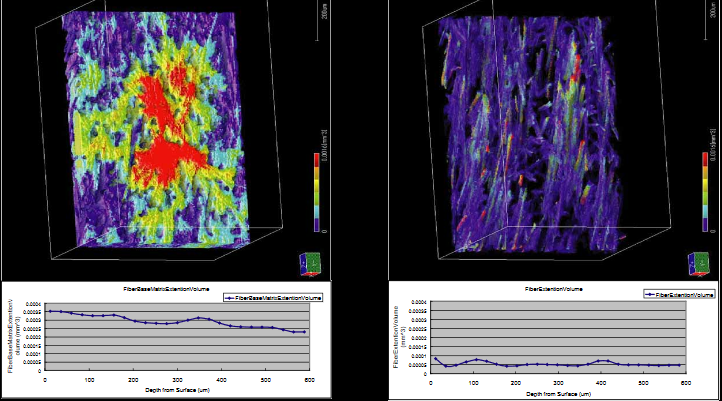

* (27) out of fiber star volume (V* outside fiber) [mm3]

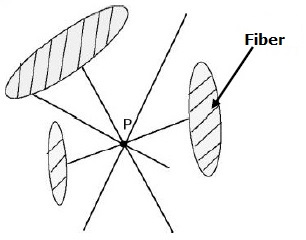

From the point of view of the outside of the brfiber,
the outside of the fiber that is not obstructed by the fiber volume of space If there are holes in the fiber distribution V* outside fiber has a large value. It means the average of the volume outside the fiber in the range that can be seen in all directions without being blocked by the fiber from the point outside the fiber, and is defined by the following formula. V* base = π/3 × L03 L0 :The length that a straight line passing through an arbitrary point outside the fiber crosses the outside of the fiber until it hits the fiber
(28) Fiber star volume (V* fiber) [mm3]
It means the average of the volume of the range to the end of
the fiber in all directions in the fiber, and is defined by the following formula. V* Fiber = π/3 × ΣI14 / ΣI1 I1 : the length that any straight line crosses the fiber If there is a clump of fibers, the value will be large. |
|
