Particle measurement TRI/3D-PRT
This software analyzes transmission electron microscope CT images and X-ray CT images
of structures containing cavities and foreign particles such as building materials
and gypsum boards, and measures the distribution of the elements that make up the materials.
Large data (1024, etc.) analysis supports 64-bit version
feature

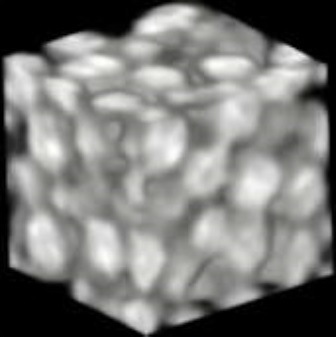

It is possible to display the base material and particles separately from the CT image of
the structure containing cavities and foreign particles.

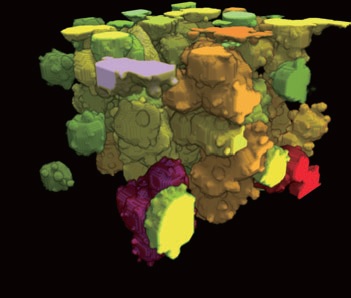

Three-dimensional separation and color-coded 3D display of independent particles are possible.
It is possible to display cross-sectional cut movies of materials in which independent particles are color-coded.
This allows confirmation of the 3D shape of individual particles.
Displayed images can be saved and played back.

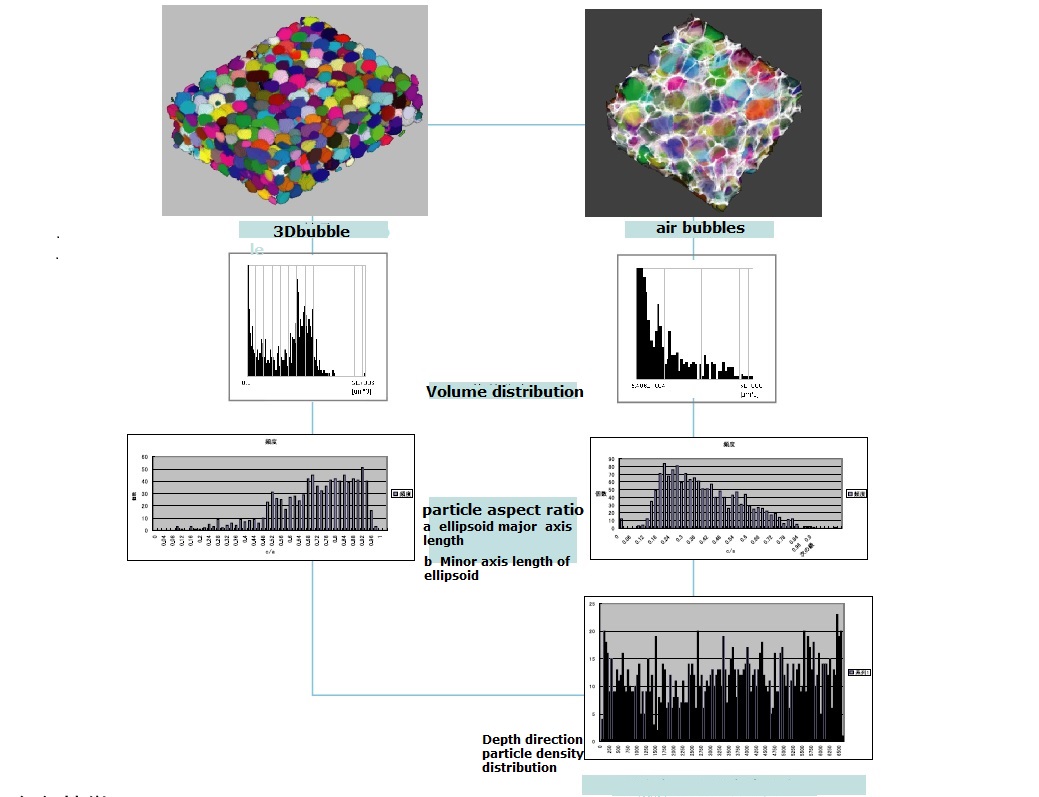

It is possible to measure the distribution of volume, surface area, aspect ratio, etc. for each independent particle within the specified range.
3D analysis of 512 x 512 x 300 X-ray CT images is possible.
Distance measurement between two specified points is possible.
Measurement values can be output to a CVS file.
Capable of outputting a hexahedral mesh for FEM simulation of the infrastructure structure within the specified range.
Main measurement
volume
Equivalent sphere diameter
Inertial ellipsoid diameter 2a,2b,2c
3D particle density distribution in the depth direction
