Fiber detail measurement

Fiber width measurement

Detailed fiber angle measurement

Detailed measurement of fiber dispersion

Mesh generation for finite element analysis

Fiber measurement option   TRI/3D-FBR-DT2 catalog pdf Equipped with detailed fiber measurement option, separate overlapping fibers and measure the length, orientation direction, etc. of each fiber. The results are output to an Excel readable tabular file for each fiber. This software is an option of FBR64.

Measurement item Length of each fiber Fiber start point, end point, barycentric coordinates(x,y,z) Orientation direction angle with z-axis　θ angle with x-axis　Φ

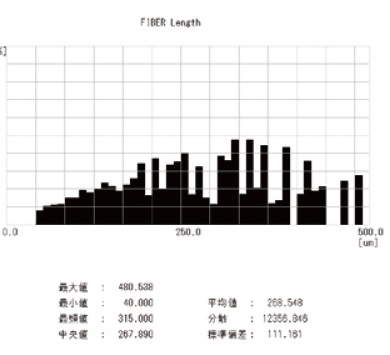

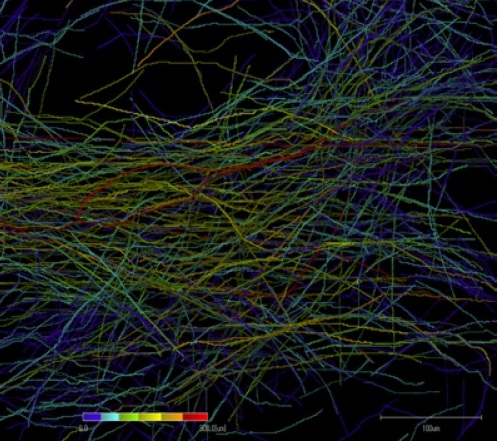

fiber length distribution fiber length image Fiber detail measurement
