Porous Structure Large Particle Separation Option   TRI/3D-PRT-LRG
When a spherical 3D particle contains a mixture of giant particles and distorted particles,
Automatically separates and extracts large particles and distorted particles,
and further separates and extracts spherical 3D particles.

■Large particle separation

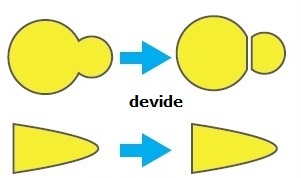

①It is possible to separate large and small particles that are in contact
with each other Large particle separation　　 PRT-LRG-MSR
do not divide

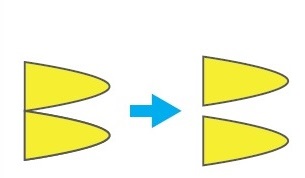

②Capable of separating large particles in contact
with triangular pyramids　　 PRT-LRG-MSR

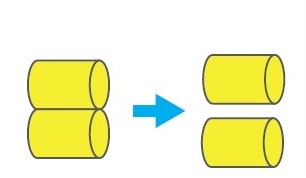

③Capable of separating large cylindrical particles
that are in contact　　　　 PRT-LRG-MSR

PRT-LRG-MSR

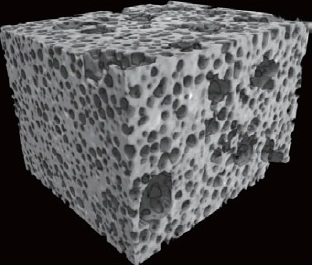

original image
PRT-LRG-MSR

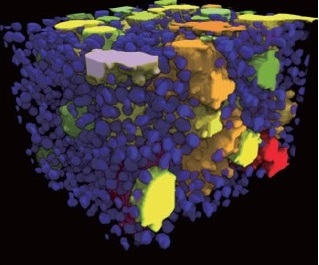

giant particle separation grain image

PRT-LRG-MSR
PRT-LRG-MSR

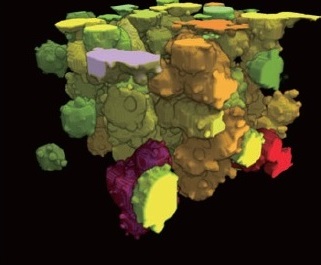

giant particle separation grain image
(small particles hidden) PRT-LRG-MSR
